Adobe Captivate 2019 – Virtual Reality Project

Adobe Captivate 2019 - Virtual Reality project

In the latest release of Adobe Captivate 2019, the Virtual Reality feature is included. With this feature, one can provide a low cost and high performance courses. In this blog, we are going to see how to create a virtual reality project in Adobe Captivate 2019.

You can open virtual reality project in two ways:

  1. New > Virtual Reality Project
  2. File > New Project > Virtual Reality Project
    Adobe Captivate 2019 - Virtual Reality project
  3. To add a 360 image or video, click + icon on the screen.
    Adobe Captivate 2019 - Virtual Reality project
  4. A popup window will appear on the screen. Navigate to your local drive and select 360 image or video.
    Adobe Captivate 2019 - Virtual Reality project
  5. You can see this popup window from the second time when you import 360 image/video.
    Adobe Captivate 2019 - Virtual Reality project
  6. You can add interactive elements like Hotspots on the image. To do so, click on Hotspots option in the menu bar and select any hotspot from the drop-down list.
    Adobe Captivate 2019 - Virtual Reality project
  7. Then assign interaction to the Hotspot. For this, double-click on the Hotspot, and choose an action under On Click drop-down list from the properties inspector. Here, we have taken Display Text action.
    Adobe Captivate 2019 - Virtual Reality projectNote: You can assign more actions by adding more hotspots.
  8. You can develop project in two ways – Guided and Exploratory.
    Guided: Screen rotation will be navigated automatically in the sequence that you had added the hotspots, when you preview the project.
    Exploratory: User should explore the screen and identify the hotspots. As default, the focus of the screen remains same as in the editing stage when you preview or publish the project.
    Adobe Captivate 2019 - Virtual Reality project
  9. Once you’ve selected Guided or Exploratory option, you can see Display Duration where you can increase or decrease the time of the text that is displayed on the screen.
    Adobe Captivate 2019 - Virtual Reality project
  10. Then assign a text label to the hotpot. To do so, click on Text on the Menu bar and select Label option from the drop-down.
    Adobe Captivate 2019 - Virtual Reality project
  11. Type the caption text in the label field given under properties panel. You can also make necessary changes to the text.
    Adobe Captivate 2019 - Virtual Reality project
  12. Click Publish to preview the project. Then, click on hotspot in runtime to check the interactivity.
    Adobe Captivate 2019 - Virtual Reality project
  13. The text appears as shown below.
    Adobe Captivate 2019 - Virtual Reality project
  14. You can see a visited tick mark once you click the hotspot.
    Adobe Captivate 2019 - Virtual Reality project

Publish settings of Virtual Reality Devices:

  1. Click Publish > Publish for Virtual Reality Devices
    Adobe Captivate 2019 - Virtual Reality project
  2. Enter the project title and the location. In the publishing options, see Publish project as HTML5.
    Adobe Captivate 2019 - Virtual Reality project

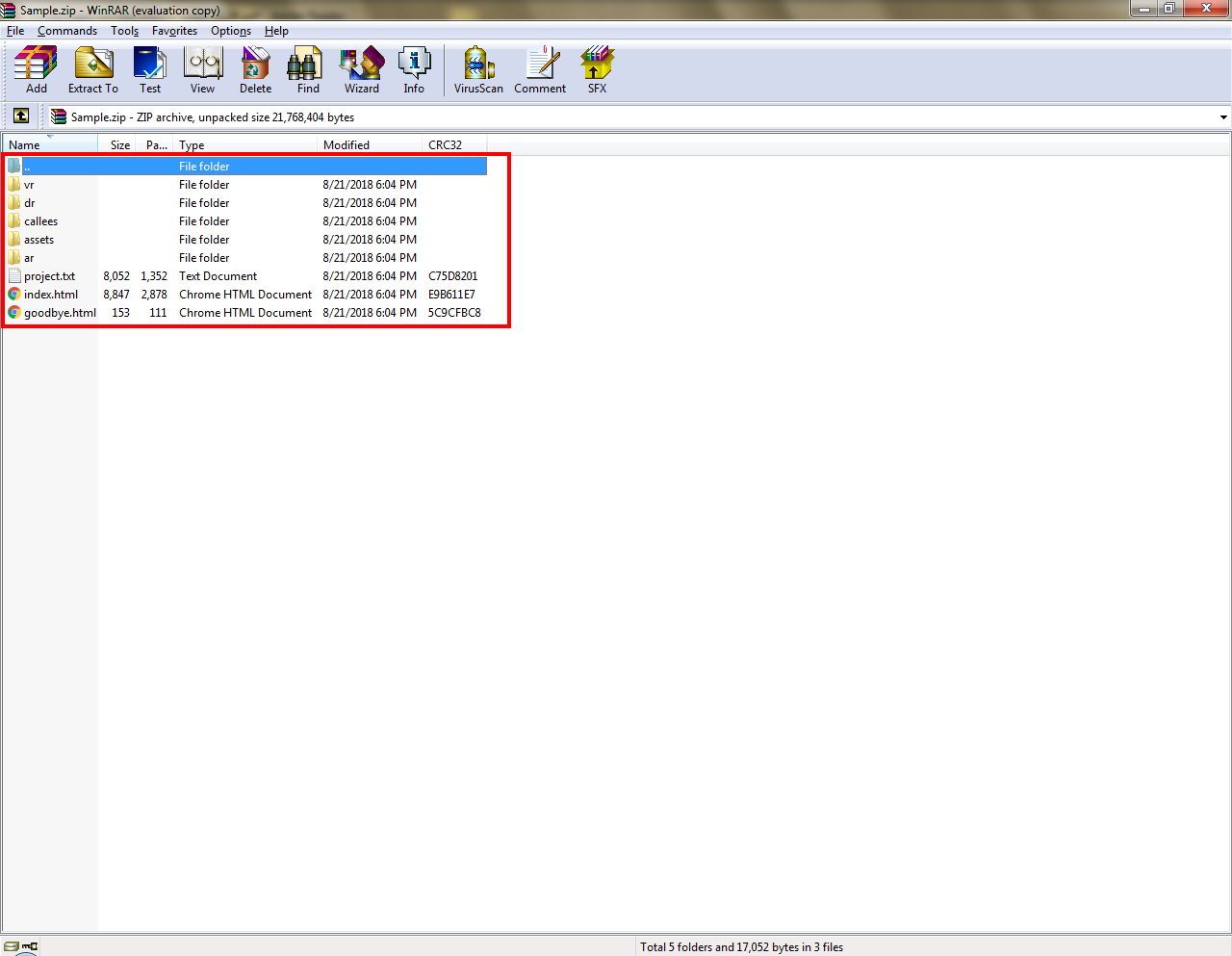

  3. After publishing your project, upload your project assets on a web server. The assets are in folders which are as follows:
    • vr
    • dr
    • callers
    • assets
    • art
    • project.txt
    • index.html
    • goodbye.html

    Adobe Captivate 2019 - Virtual Reality project-16
    By adapting this feature in Adobe Captivate 2019, you can create immersive learning experience taking learner engagement to the next level.

We have created a sample demo course on “Adobe Captivate 2019” for your reference. Click the below buttons to access the course.
