How to Customize Table of Contents Using Shared Actions in Adobe Captivate 2019

Adobe Captivate is an eLearning authoring tool that is used for creating variety of eLearning content such as software simulations, branched scenarios, and training content in HTML5 format. You can create beautiful, mobile-ready courses with the all-new Quick Start Projects, ready-to-go slides, and out-of-the-box interactions.

In this blog, we are going to look at the menu feature or the Table of Content (TOC).

Step 1: To begin, choose a custom menu button and give it a unique name. Ex: Menu button.

Contents Using Shared Actions in Adobe Captivate 2019 1

Step 2: Based on the slide headings, create a custom Table of Content as buttons and group it.

Contents Using Shared Actions in Adobe Captivate 2019 2

Step 3: Next, add new variable as shown below.

Contents Using Shared Actions in Adobe Captivate 2019 3

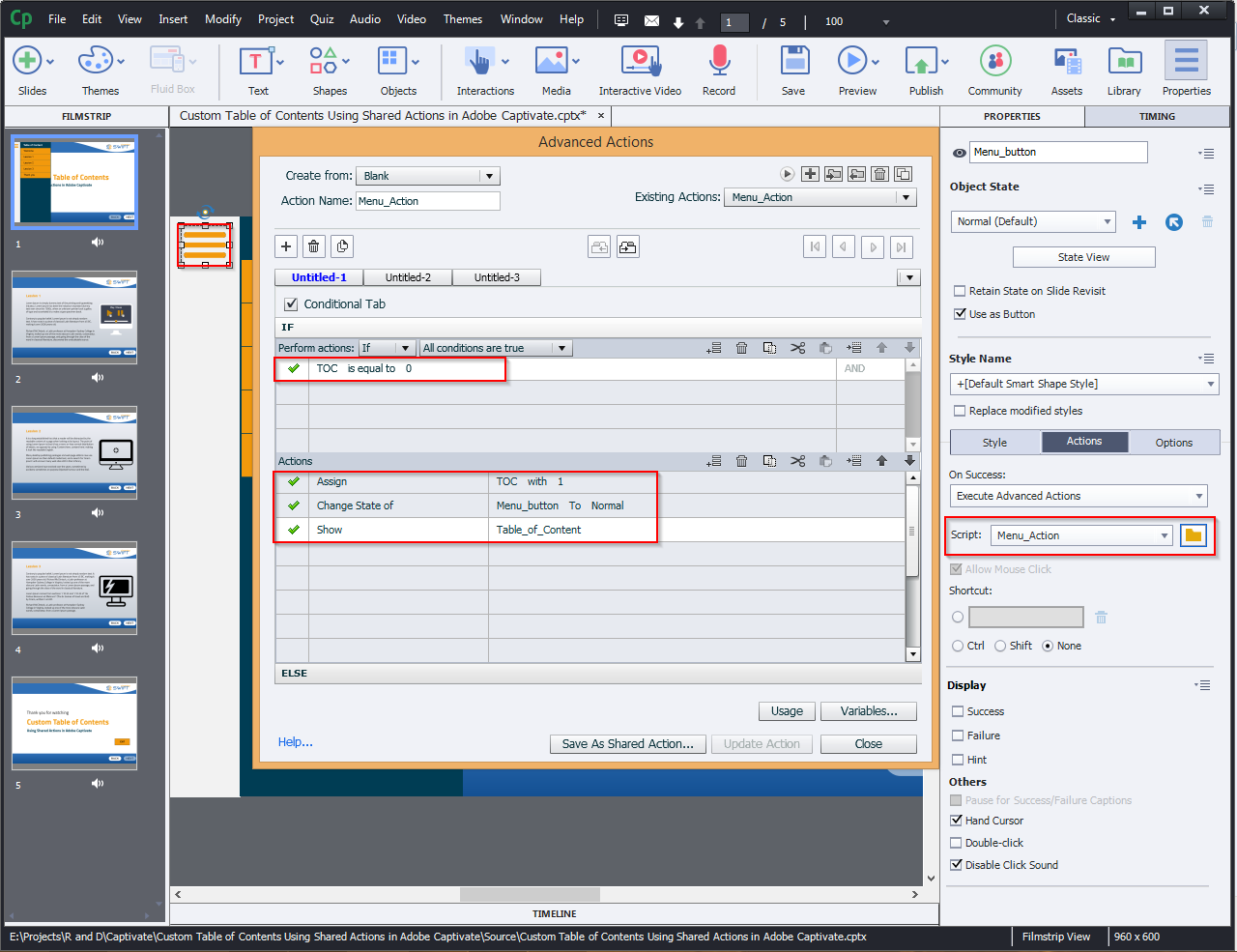

Step 4: Create a menu action:
IF:
TOC is equal to 0

Actions:
Assign TOC with 1
Change State of Menu_buttton To Normal
Show Table_of_content

Contents Using Shared Actions in Adobe Captivate 2019 4

Else:
Assign TOC with 0
Change State of Menu_buttton To Selected
Show Table_of_content

Contents Using Shared Actions in Adobe Captivate 2019 4a

Step 5: Now, follow the steps given below to create a shared action:
Give a specific name for action (Ex: Toc_click).
Assign TOC with 0.
Change State of Menu_button To Normal.
Hide: Table_of_Content
Jump to Slide: (Which slide do you want to visit?)

Contents Using Shared Actions in Adobe Captivate 2019 5

Step 6: Click Save as Shared Action…

Contents Using Shared Actions in Adobe Captivate 2019 6

Step 7: When you choose Save As Shared Action…., a window similar to the one below appears.

Contents Using Shared Actions in Adobe Captivate 2019 7

Step 8: As shown in the screenshot below, update the highlighted field.

Contents Using Shared Actions in Adobe Captivate 2019 8

Step 9: Now select the title from the table of content and go to Executive Shared Action.

Contents Using Shared Actions in Adobe Captivate 2019 9

Step 10: In the highlighted field, enter the parameter value.

Contents Using Shared Actions in Adobe Captivate 2019 10

Contents Using Shared Actions in Adobe Captivate 2019 10a

Step 11: The same procedure should be followed for each title in the table of contents and assign the respective slide number in jump to slide.

Contents Using Shared Actions in Adobe Captivate 2019 11

Step 12: On each slide, you must execute the global action “On Enter” as well as the actions mentioned below.

Hide: Table of Content
Change State of Menu_button To Normal.

Contents Using Shared Actions in Adobe Captivate 2019 12

Here is the sample course with a customized Table of Content:

https://www.swiftelearningservices.com/samples/custom_table_of_contents/index_scorm.html
