How to create responsive simulations using adobe captivate 2017?

How to create responsive simulations using adobe captivate 2017

In this blog, we are going to see how to create responsive simulations using Adobe Captivate 2017.

In general, simulation can be created in three ways. They are:

Demo – In this mode, user can view the simulation like a video without the need to interact.

Training – In this mode, user can interact with the project as well as it will be directing the user using dialog boxes with respect to the steps derived by the developer

Assessment – It allows user to click the mouse at the appropriate areas, type in information into various fields and click on fields or buttons to submit the content without any hints/dialog box.

For instance, let us record the steps to create responsive simulations in Adobe captivate 2017 demo mode. To do so, you need to follow the steps below:

Step 1

First, select Responsive Project from the available options in captivate.

How to create responsive simulations using adobe captivate 2017

Step 2

Now, click on Slides option below the file tab and choose Software simulationfrom the drop down menu.

How to create responsive simulations using adobe captivate 2017

How to create responsive simulations using adobe captivate 2017

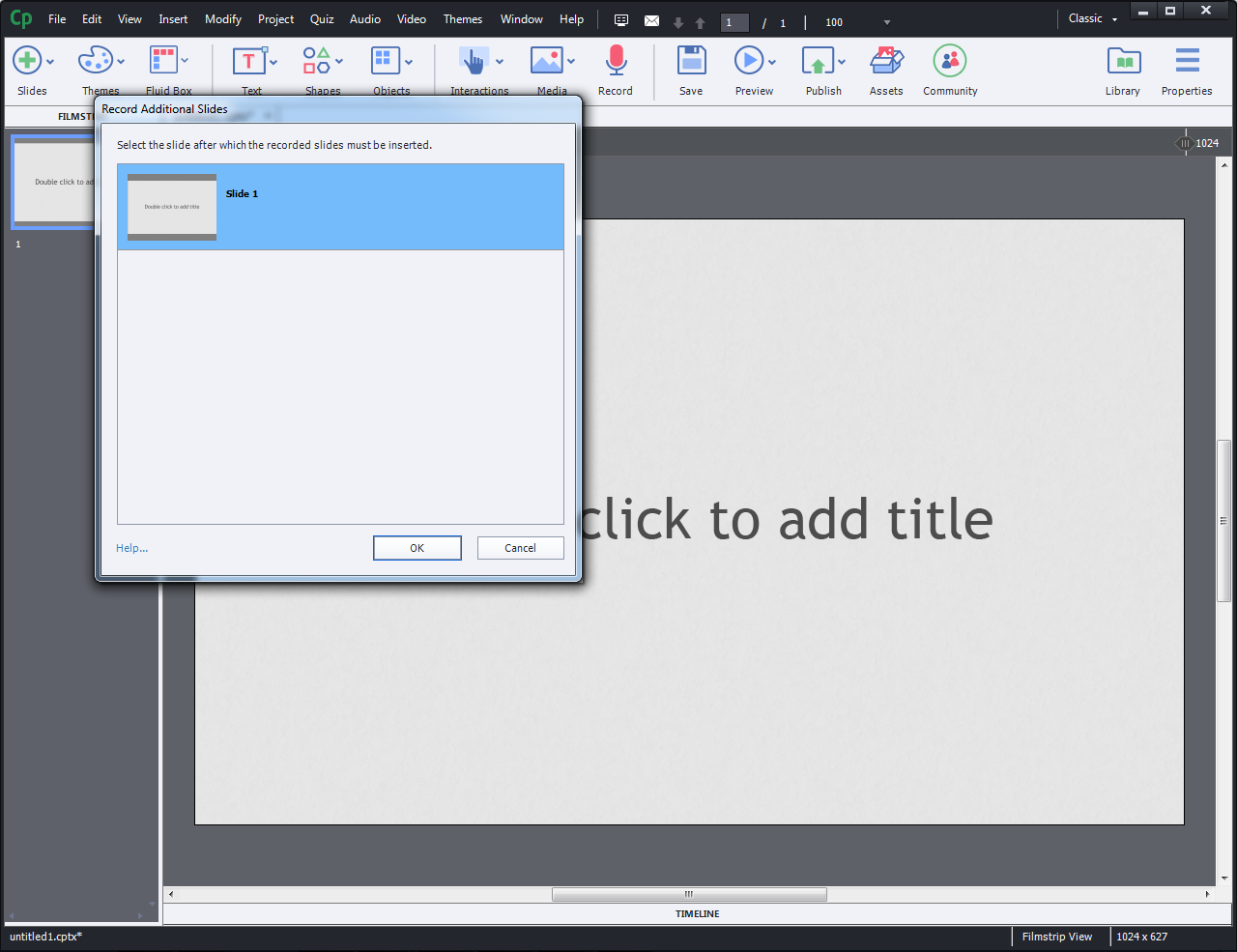

Step 3

Next, select the slide form where you need to insert this simulation.

How to create responsive simulations using adobe captivate 2017

Step 4

This will open a Record dialog box.

How to create responsive simulations using adobe captivate 2017

Step 5

There you need to select the Microsoft word presentation from the select to window to record drop down menu.

How to create responsive simulations using adobe captivate 2017

Step 6

Next, check the box Snap to window to toggle it to the desired areHow to create responsive simulations using adobe captivate 2017

Step 7

Now, select the mode as Demo mode and click Record button to start your recording

How to create responsive simulations using adobe captivate 2017

How to create responsive simulations using adobe captivate 2017

Step 8

After counter count downs to 1, automatically your Microsoft Word comes to the foreground.

You can make your own steps by clicking on to the project. Say for example, follow the below steps.

  1. Click on insert tab in Microsoft word ribbon.How to create responsive simulations using adobe captivate 2017_

2. Next, click on chart option.

How to create responsive simulations using adobe captivate 2017_

3. Now, select Column chart option in the left side menu.

How to create responsive simulations using adobe captivate 2017

Step 9

To end your simulation, click on End key on your keyboard.

How to create responsive simulations using adobe captivate 2017-10

Step 10

Automatically, the captivated slides will be opened in adobe captivate and comes to the foreground.

How to create responsive simulations using adobe captivate 2017_7

Step 11

Next, click on the Preview in the captivate ribbon and select Project to preview the output of the simulation slides.

How to create responsive simulations using adobe captivate 2017

Step 12

Here, you can also see a dialog box which helps the learner to navigate through the simulated slides.

How to create responsive simulations using adobe captivate 2017_

Step 13

You can see a blue color rectangle, a focus area of the simulation slides displayed according to the device you select like desktop, tab and mobile. You can also move the rectangle to display a different area.

How to create responsive simulations using adobe captivate 2017_

How to create responsive simulations using adobe captivate 2017_

  • In this way you can create responsive simulations in other modes too and make the most use of adobe captivate to produce effective e-learning solutions to the learners.
